Metehe Concertto 300 product sheet’s material is 1.00 mm warranty-coated steel sheet. The usable width of the product sheet is 1,200 mm and the maximum length is 3,200 mm. Concertto 300 panels’ width is 300 mm and the length of the panel can be chosen steplessly between 300-1,200 mm. The number of panels can be selected in such a way that the maximum length of the sheet is not exceeded. The coating options are PVDF and PVDF+ Matt (coating warranty 20 years) and PUR35, (coating warranty 15 years).
The Concertto product sheet is mainly used for horizontal installations, in which case an extremely stylish and horizontally streamlined facade can be achieved. The final result in a horizontal installation is finished with the corner pieces of the Concertto system.
Metehe Oy
Topi Konttinen
tel. +358 207 639 658
topi.konttinen@metehe.fi

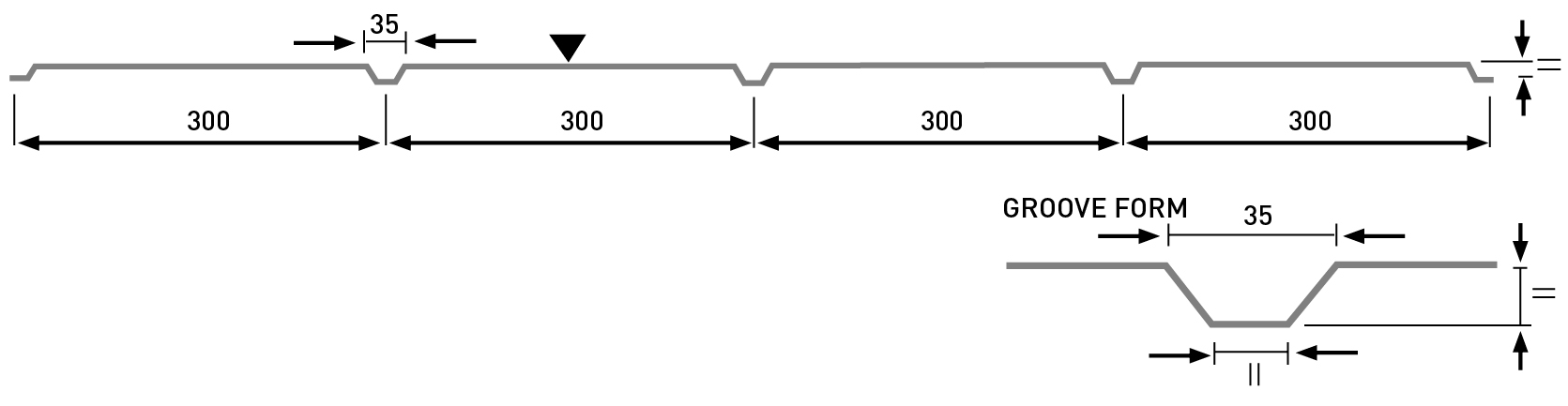

Metehe Concertto 300
| Application | Outer and inner surfaces and ceilings of buildings |
| Material | Hot-galvanised steel sheet with PVDF coating (protective membrane) or paint coating, material thickness 1.00 mm |
| Module width | 4 x 300 mm |
| Module length | 300 – 1,200 mm |
| Usable width of sheet | 1,200 mm |
| Maximum length of sheet | 3,200 mm |
| Profile height | 11 mm |
Please note that the colours are for reference purposes only and may differ from the sheet metal’s true colour tone.
Please contact us and we will deliver a sheet metal colour sample of your chosen material.
Metehe Oy
tel: +358 207 639 640
myynti@metehe.fi
20 White |
21 Light Grey |
22 Grey |
23 Dark Grey |
35 Blue |
40 Silver |
41 Dark Silver |
45 Metallic Graphite |
RAL 3000 Flame Red |
Corten |
Saffiano Black |
Metehe Concertto corner 300
| Application | Outer corners of buildings |
| Material | Hot-galvanised steel sheet with PVDF coating (protective membrane) or paint coating, material thickness 1.00 mm |
| Module height | 4 x 300 mm |
| Usable length of side (A and B) | 150 – 600 mm |
| Usable height of corner | 1,200 mm |
The brochures on the website are in Finnish, unless stated otherwise.
Metehe Julkisivuverhoukset -esite FI
Metehe Concertto references brochure EN
Metehe Concertto brochure EN
Metehe Concertto Design and installation EN
Metehe Concertto details dwg
Metehe Concertto details pdf
