Metehe Concertto 400

Metehe Concertto 400 product sheet’s material is 1.00 mm warranty-coated steel sheet. The usable width of the product sheet is 1,200 mm and the maximum length is 3,200 mm. Concertto 400 panels’ width is 400 mm and the length of the panel can be chosen steplessly between 300-1,200 mm. The number of panels can be selected in such a way that the maximum length of the sheet is not exceeded. The coating options are PVDF and PVDF+ Matt (coating warranty  20 years) and PUR35, (coating warranty 15 years).

The Concertto product sheet is mainly used for horizontal installations, in which case an extremely stylish and horizontally streamlined facade can be achieved. The final result in a horizontal installation is finished with the corner pieces of the Concertto system.

Metehe Oy
Topi Konttinen
tel. +358 207 639 658
topi.konttinen@metehe.fi

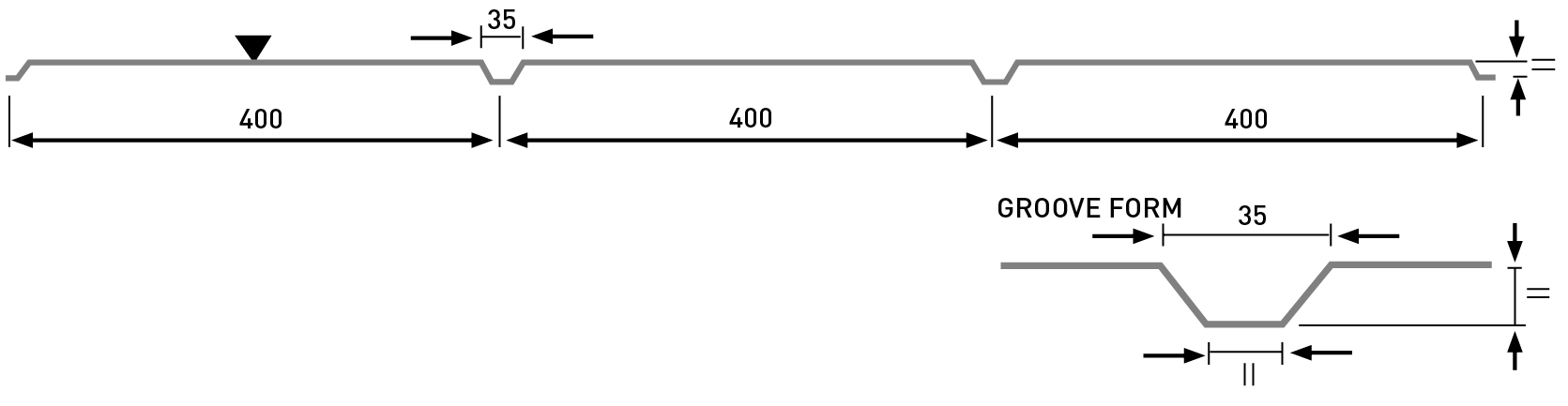

Dimensions

DIMENSIONS


Metehe Concertto 400

Application Outer and inner surfaces and ceilings of buildings
Material Hot-galvanised steel sheet with PVDF coating (protective membrane) or paint coating,
material thickness 1.00 mm
Module width 3 x 400 mm
Module length 300–1,200 mm
Usable width of sheet 1,200 mm
Maximum length of sheet 3,200 mm
Profile height 11 mm



Colours and coatings

Please note that the colours are for reference purposes only and may differ from the sheet metal’s true colour tone.
Please contact us and we will deliver a sheet metal colour sample of your chosen material.
Metehe Oy
tel: +358 207 639 640
myynti@metehe.fi

20 White
PVDF+ Matt

21 Light Grey
PVDF+ Matt

22 Grey
PVDF+ Matt

23 Dark Grey
PVDF+ Matt

35 Blue
PUR35

40 Silver
PVDF+ Matt

41 Dark Silver
PVDF+ Matt

45 Metallic Graphite
PVDF+ Matt

RAL 3000 Flame Red
PUR35

Corten
PE

Saffiano Black
PVDF



Metehe Concertto corner


Metehe Concertto corner 400



Application Outer corners of buildings
Material Hot-galvanised steel sheet with PVDF coating (protective membrane) or paint coating,
material thickness 1.00 mm
Module height 2 x 400 mm
Usable length of side (A and B) 150–600 mm
Usable height of corner 1,200 mm



Brochures and design

The brochures on the website are in Finnish, unless stated otherwise.

Metehe Julkisivuverhoukset -esite FI
Metehe Concertto brochure EN
Metehe Concertto references brochure EN

Metehe Concertto Design and installation EN
Metehe Concertto details dwg
Metehe Concertto details pdf

Other documents
