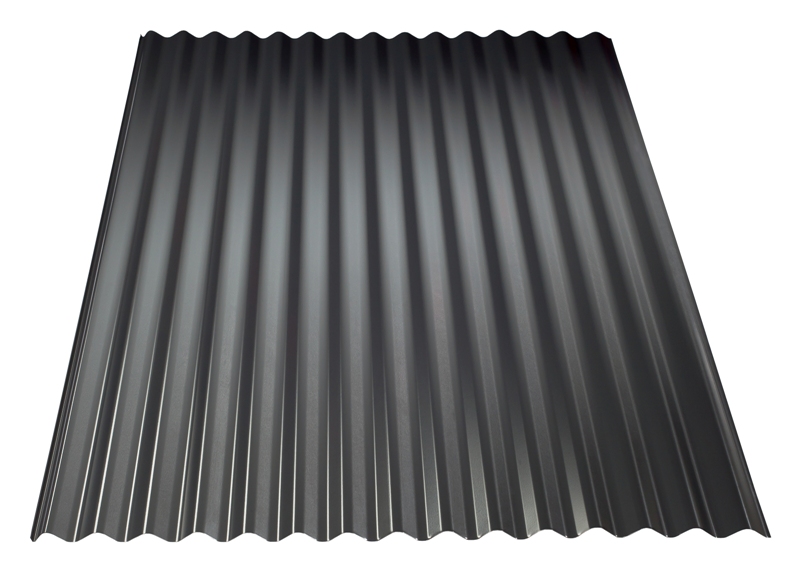

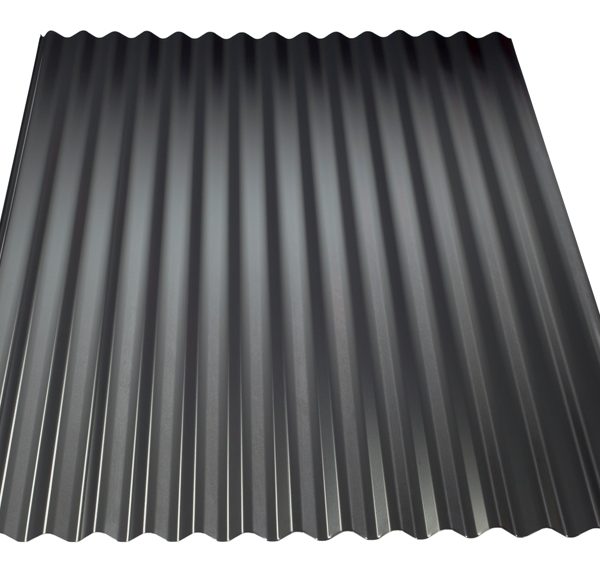

The soft-shaped Metehe Aalto corrugated profile is produced with 0.45-0.60 mm colour-coated steel sheet. The old-style wave-patterned steel roofing is well-suited for residential and industrial buildings. Coating options PUR and PUR Matt (technical warranty 50 years), HC25 (technical warranty 40 years) and PE (technical warranty 30 years).

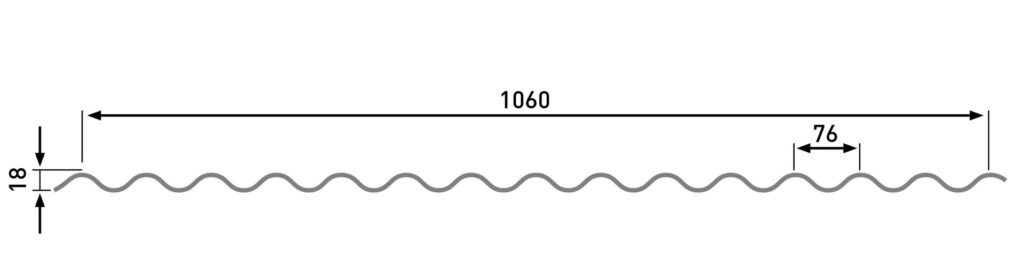

Profile dimensions roofing sheets dwg
Metehe Oy
tel: +358 207 639 640
myynti@metehe.fi
Metehe Aalto
| Application: | Roofing sheet, minimum inclination of roof 1:7 |
| Material: | Colour-coated 0.45-0.60 mm steel sheet |
| Dimensions: | Usable width 1,060 mm Total width ~ 1,120 mm Total height 18 mm Standard length 100–12,200 mm |
| Installation: | With roofing screws from the base of the groove |
Please note that the colours are for reference purposes only and may differ from the sheet metal’s true colour tone. Please contact us and we will deliver a sheet metal colour sample of your chosen material.
Metehe Oy
tel: +358 207 639 640
myynti@metehe.fi
11 Spruce Green |
21 Light Grey |
22 Grey |
23 Dark Grey |
2H3 Anthracite |
29 Red |
30 Light Brown |
31 Brown |
32 Dark Brown |
33 Black |
34 Light Blue |
35 Blue |
36 Light Green |
37 Green |
40 Silver |
41 Dark Silver |
750 Brick Red |
|
